Range-Extended Electric Drilling Rig Scales Heavy Construction

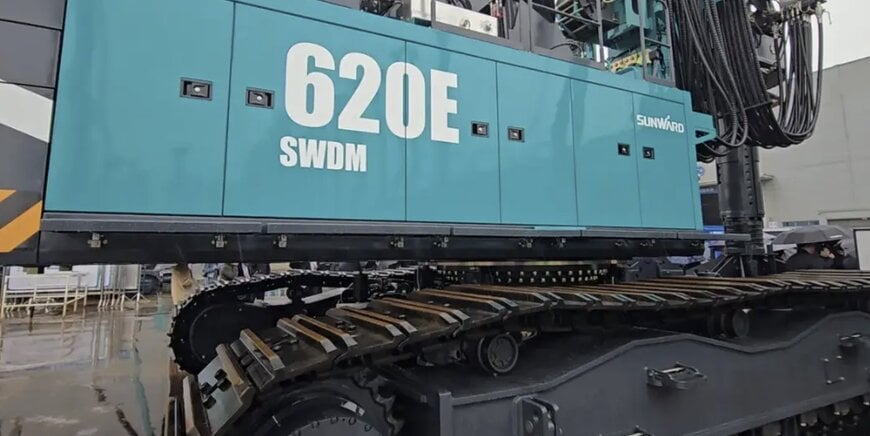

Sunward introduces a high-capacity rotary drilling rig with hybrid electric architecture, targeting large-scale infrastructure projects with improved efficiency and reduced emissions.  www.sunwardmachine.com Sunward has unveiled a large-scale range-extended electric rotary drilling rig in Changsha, China, designed for foundation engineering applications requiring high torque and operational flexibility. The system combines electric drive with range-extending capability to address energy limitations in heavy-duty construction equipment. High-capacity design for infrastructure applications The drilling rig is engineered for demanding construction environments, with an operating weight of 200 tons, a maximum torque of 620 kN·m, and a drilling diameter of up to 3,500 mm. These specifications position the system for use in large-scale projects such as bridge foundations and high-speed rail infrastructure. Such applications require stable torque delivery and precise control under variable load conditions, particularly in deep foundation drilling where soil resistance and operating dynamics can fluctuate significantly. Hybrid electric architecture with operational flexibility The rig supports multiple operating modes, including fully electric, range-extended, and plug-in configurations. This allows adaptation to different site conditions, including urban environments with emissions restrictions and remote locations with limited access to grid power. The range-extended design mitigates one of the primary constraints of fully electric construction equipment—limited operating time—by providing additional energy generation capability when required. This ensures continuous operation without compromising performance. Energy recovery and efficiency improvements A key feature of the system is its energy recovery capability. During lowering operations, the rig captures potential energy and converts it into electrical energy, achieving recovery rates of over 70%. Up to 5 kWh can be recovered per cycle, which can be reused for auxiliary functions such as cabin heating or battery conditioning. This contributes to overall energy savings of 5–10% at the system level. Additional efficiency gains are achieved through multi-motor synchronization and transient load buffer control, which optimize power distribution and reduce mechanical stress during operation. Reduced vibration and extended component lifespan The system incorporates control technologies that reduce vibration and impact loads by approximately 15%. Lower mechanical stress contributes to improved operational stability and reduced wear on structural components. As a result, key consumables such as drill pipes and tools experience an estimated 20% increase in service life. This reduces maintenance frequency and supports lower lifecycle costs in high-utilization environments. Application in urban and remote construction environments The combination of electric drive and reduced noise emissions makes the rig suitable for use in urban areas with strict environmental regulations. At the same time, the range-extended capability enables deployment in remote construction sites where electrical infrastructure may be limited. Transition toward electrified heavy equipment The introduction of high-capacity electric and hybrid drilling rigs reflects broader trends in construction equipment electrification. By addressing performance, efficiency, and operational flexibility, such systems enable the transition from pilot projects to large-scale deployment. Edited by Romila DSilva, Induportals Editor, with AI assistance. www.sunwardmachine.com Powered by Induportals Media Publishing
