New system enables flexible pile driving with multiple crane types, delivering high impact energy and reduced noise for demanding construction applications.
www.liebherr.com
Reference Image
Liebherr is expanding its foundation engineering equipment portfolio by pairing a rope-suspended leader with its H 10 hydraulic hammer to drive free-standing piles vertically and at an inclination. This system allows operators in the marine and port construction industries to execute piling operations using a variety of existing carrier cranes instead of requiring dedicated piling rigs.
Technical Integration and Marine Construction Applications
The integration of a rope-suspended leader with a hydraulic hammer allows piling work to occur at extended distances or behind physical obstacles. With a combined system weight of 27 tonnes, the leader and hammer can be positioned directly over the pile. The equipment is engineered for piles weighing up to 30 tonnes, with a maximum diameter of 1,220 millimetres and an allowable pile inclination of up to 1:3. These specifications provide distinct operational reach for marine or port construction, where equipment positioning is often restricted by water or existing infrastructure.
Acoustic Profile and Impact Energy Transfer Efficiency
The hydraulic hammer utilizes a modular weight system, accommodating a maximum piling weight of 10 tonnes. The equipment achieves a 95 percent efficiency rate, meaning the vast majority of generated impact energy is transferred directly into the pile. In terms of acoustic performance, the noise-reducing design ensures that four simultaneously operated hammers generate the same sound power level as a single conventional hammer operating without noise reduction. This acoustic characteristic assists in meeting environmental compliance standards on construction sites.

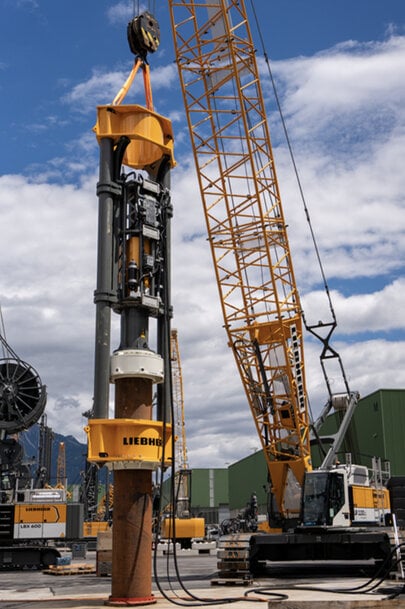

A flexible solution for pile driving: the rope-suspended leader with hammer type H 10 from Liebherr.
The equipment is compatible with both third-party carrier machines via a stand-alone control system and existing Liebherr LRB and LRH series piling rigs. The manufacturer presented this model during the 50th anniversary of Liebherr-Werk Nenzing GmbH in June 2026, and the system is available for industry deployment.
Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement
In the foundation engineering equipment sector, rope-suspended hydraulic hammers are evaluated against diesel hammers and standard rig-mounted impact hammers. Comparable systems, such as hydraulic impact hammers produced by industry peers like IHC IQIP and Junttan, also utilize modular drop weights and prioritize high-efficiency energy transfer mechanisms. Benchmark criteria for these systems generally include energy transfer efficiency, noise emission levels, and carrier machine versatility. The reported 95 percent energy transfer efficiency aligns with top-tier hydraulic impact hammers, which typically range between 85 and 95 percent, significantly outperforming the 30 to 50 percent energy transfer efficiency of traditional diesel hammers. Utilizing standard duty cycle crawler cranes via a stand-alone control system instead of dedicated piling rigs provides a measurable reduction in equipment mobilization requirements, establishing a functional advantage in large-scale port infrastructure projects.
Edited by Natania Lyngdoh, Induportals editor, assisted by AI.
