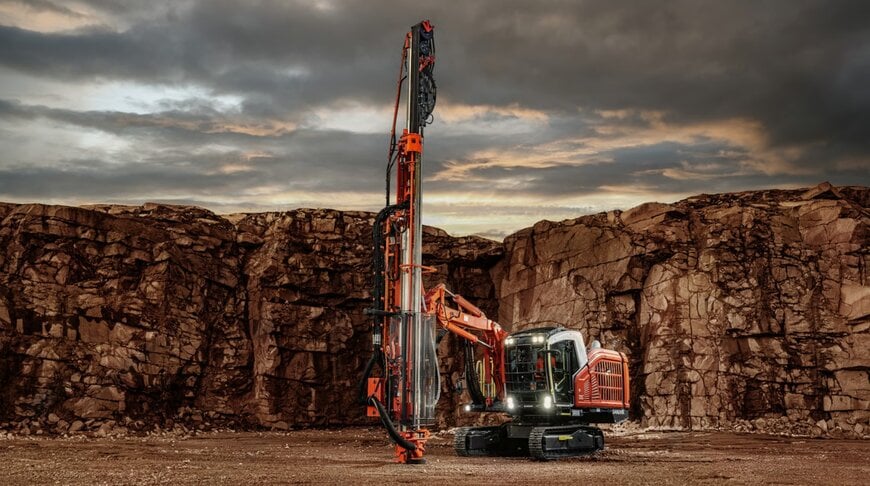

Top Hammer Surface Drill Rig Designed for High-Capacity Mining Operations

Sandvik has introduced the Ranger DX1010i, a long-feed drill rig engineered to optimize single-pass drilling and air capacity for demanding mineral extraction environments.  www.home.sandvik At the CONEXPO-CON/AGG 2026 trade show in Las Vegas, held in March 2026, Sandvik launched the Ranger DX1010i to address specific throughput requirements in surface mining and large-scale quarrying. As an evolution of the existing DXi family, this model integrates a long-feed system to facilitate deeper single-pass drilling, reducing the frequency of rod changes and repositioning cycles. The technology is primarily aimed at improving efficiency in the automotive data ecosystem of site management, where precision drilling data must be integrated into broader digital supply chain workflows. Single-Pass Drilling and Feed Capacity The primary technical advancement of the Ranger DX1010i is its 6.4-meter (21-foot) single-pass drilling capability. By extending the feed length, the rig minimizes the non-productive time associated with rod handling and collaring. This configuration allows for more continuous operation on high-bench mining patterns. The system is paired with the RD930 long-piston rock drill, which is designed to generate high-intensity shock waves for increased penetration rates in hard rock. Performance is further supported by CT55 and CT67 shoulder-driven curved thread rock tools, which are engineered to improve tool life and reduce energy loss during percussion. Enhanced Pneumatic and Auxiliary Systems To maintain hole cleanliness at greater depths, Sandvik has upgraded the rig's auxiliary systems. The onboard compressor now delivers a flushing capacity of 11 cubic meters per minute (389 cfm), ensuring that cuttings are efficiently removed from deeper boreholes to prevent rod sticking and ensure consistent penetration. Furthermore, the water flushing system has been expanded with an optional 500-liter tank, extending the duration of dust suppression and hole cooling between refills. Automation and Digital Integration The Ranger DX1010i utilizes the SICA control system to manage its 290-degree rotating superstructure. This revolving design provides a drilling coverage area of 55 square meters, enabling the operator to drill multiple holes from a single stationary position. For technical precision, the rig incorporates several automation layers: iClean System: Automates the hole cleaning cycle to ensure consistent results regardless of operator experience. Collaring Automatics: Optimizes the initial phase of drilling to maintain hole straightness and reduce tool wear. TIM3D Hole Navigation: Provides wireless transfer of drilling plans and real-time Measurement-While-Drilling (MWD) data to site offices. These digital features are housed within the iCab, a pressurized and noise-insulated cabin that maintains interior sound levels below 75 dB(A). Stability and Operational Safety Despite the increased reach and weight of the long-feed system, stability is maintained through a counterweight mechanism that automatically shifts the rig’s center of gravity opposite the boom. This allows the unit to operate on uneven benches without compromising safety. The rig’s design complies with international safety standards, including FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) certifications, ensuring structural integrity during mining applications. www.mining.sandvik Powered by Induportals Media Publishing
