High-Capacity Compact Utility Loader for Confined Construction Spaces

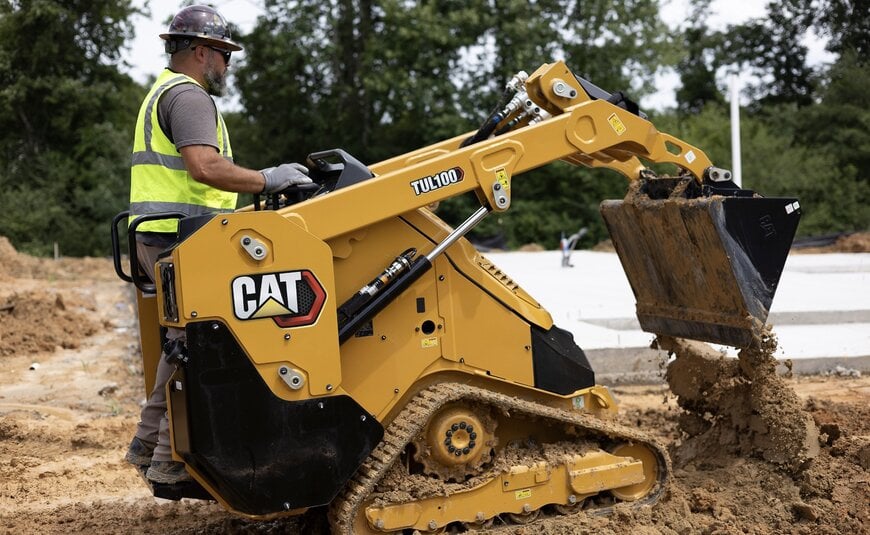

Caterpillar addresses the demand for maneuverable machinery in restricted work zones by introducing equipment featuring dual width configurations and high hydraulic output.  www.caterpillar.com Caterpillar is releasing the TUL100 compact utility loader to provide high operating capacity and maneuvering solutions for landscaping, material handling, and confined site construction applications. The new unit integrates continuous auxiliary hydraulic flow and variable track options to manage heavy materials in structurally restrictive environments where larger earthmoving equipment cannot operate. Hydraulic Performance and Operational Configuration The relevance of the TUL100 lies in its ability to deliver a rated operating capacity exceeding 1,000 pounds (454 kilograms) while maintaining a minimal footprint. The machine incorporates an advanced hydraulic system producing 16 gallons per minute (60 l/min) of flow at 3,046 psi (21,001 kPa). Operators can manage hydraulic oil delivery to attachments through adjustable auxiliary flow controls, enabling continuous hands-free operation for powered tools. Power is supplied by a C1.1 turbo diesel engine that complies with United States EPA Tier 4 Final emissions standards without requiring exhaust aftertreatment components. To accommodate varying ground conditions, the track system utilizes triple flange idlers for track retention on slopes. Users can configure the machine with a 35.7-inch (907-millimeter) track width for narrow access points or a 41.5-inch (1,054-millimeter) track width to reduce ground contact pressure and increase baseline stability. Access for routine maintenance and internal cleanout is facilitated by removable side panels and belly plates. Equipment Ecosystem Integration and Operator Interface To function efficiently within a broader construction machinery ecosystem, the loader supports both Common Industry Interface (CII) and Narrow Skid Steer Loader (NSSL) coupler standards. As noted by Zach Waite, Commercial Director of Industry Solutions, providing two coupler configurations allows the machine to run a wide range of attachments, ensuring necessary operating flexibility across various industries. Machine operation relies on selectable S- or C-steer control patterns and multifunction joysticks equipped with a thumb roller for auxiliary hydraulic management. A 4.2-inch (107-millimeter) color LCD display serves as the central command hub, allowing operators to fine-tune drive and implement response parameters. The interface supports 32 language options and retains up to 50 multi-operator security codes to save individual control preferences. Additional operational adjustments include a two-speed feature for faster travel across job sites, a creep control function that limits maximum travel speed during full joystick deflection for precise maneuvering, and a rear counterweight kit to optimize machine balance. The operator platform features handholds at the top of the station for multiple contact points during boarding and an ergonomically cushioned mat for vibration isolation. Additional Context This section details technical specifications and competitive benchmarking not included in the original news release. Within the compact equipment market, the mini track loader segment includes established benchmark platforms such as the Bobcat MT100 and the Toro Dingo TX 1000. The Bobcat MT100 features a rated operating capacity of 1,000 pounds and a peak auxiliary hydraulic flow of approximately 11.9 to 15.4 gallons per minute. By providing a 16 gpm hydraulic flow, the TUL100 establishes a competitive advantage for operating continuous-demand hydraulic attachments like trenchers, cold planers, or high-torque augers. While the Toro Dingo TX 1000 offers a slightly higher operating capacity of 1,075 pounds, the TUL100's strategic inclusion of dual coupler standards (CII and NSSL) specifically addresses attachment fleet integration. This engineering decision allows contractors to utilize existing skid-steer attachment inventories across their digital supply chain and physical fleets, reducing the need to purchase proprietary tooling for a single machine class. Edited by Aishwarya Mambet, Induportals Editor, with AI assistance. www.cat.com Powered by Induportals Media Publishing
