CASE Introduces New 3-Ton Mini Excavators for Tight Jobsites

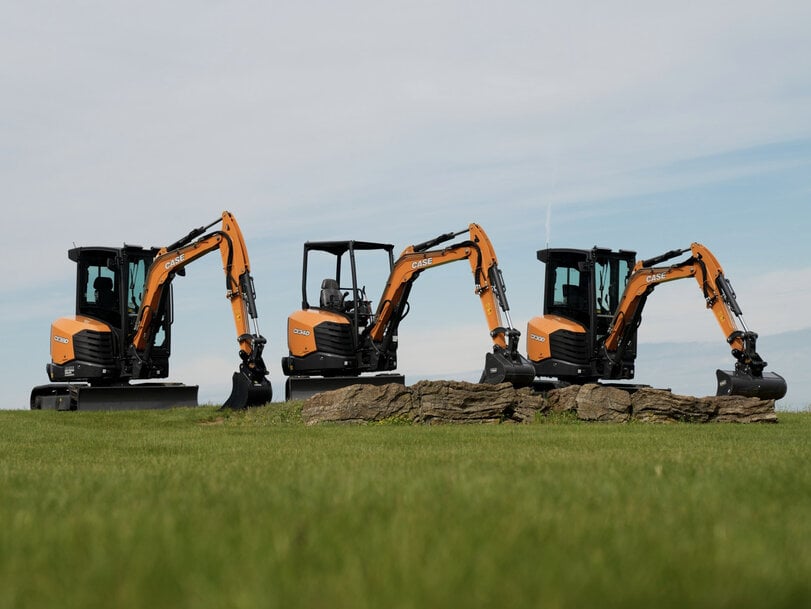

CASE Construction Equipment has launched three new D Series mini excavators—the CX30D, CX34D, and CX38D—specifically engineered to deliver high-precision hydraulic control within confined urban construction zones. This commercial roll-out introduces a specialized zero-tailswing structural configuration across all three variations, directly addressing spatial constraints in utility engineering, commercial landscaping, and close-quarters demolition.

Engineering Parameters and Performance Framework
The technical relevance of these next-generation earthmoving machines centers on balancing maximum machine stability with dynamic utility-attachment infrastructure. This design layout allows civil engineering and excavation crews to execute high-force digging operations immediately adjacent to permanent walls and structurally sensitive barriers without risking impact to the rear counterweight.

The equipment was initially previewed at the CONEXPO-CON/AGG international exposition in Las Vegas, Nevada, where engineering teams demonstrated the physical optimization of the underlying chassis layout. Mechanical operation is governed by a 24.4-horsepower diesel propulsion platform. The three units scale incrementally across operational weight boundaries to match precise target payloads: the entry-level CX30D establishes a base operating weight of 7,143 pounds, the mid-tier CX34D registers at 7,672 pounds, and the premium-tier CX38D operates at 8,333 pounds.

Hydraulic Circuitry and Kinematic Versatility
To validate industrial utility claims across different auxiliary tool systems, the product architecture incorporates standard multifunction one-way and two-way high-flow hydraulic linkages. This foundational design is supplemented by a secondary two-way auxiliary hydraulic loop, allowing complex machinery tools to perform tasks such as high-velocity trenching, precise grading, and agricultural vegetation management. Engineering groups can configure the top-tier CX38D with an optional third auxiliary hydraulic line and dedicated continuous-flow circuitry to sustain power-demanding external attachments.

Structural reach and structural breakout forces scale progressively across the series architecture. The baseline CX30D delivers 4,116 foot-pounds of structural breakout force, supporting a maximum vertical excavation depth of 8 feet 8 inches and an external horizontal reach of 15 feet 5 inches. The mid-range CX34D increases mechanical leverage to produce 6,800 foot-pounds of breakout force, extending the physical digging boundary down to 9 feet 5 inches and widening the operational horizontal footprint to 16 feet 5 inches. The heavy-duty CX38D preserves the 6,800 foot-pounds breakout force rating but integrates a specialized elongated mechanical arm assembly with an integrated hydraulic thumb bracket, pushing maximum vertical excavation limits down to 10 feet 11 inches while achieving a maximum working reach of 17 feet 7 inches.

Operator Systems and Fleet Maintenance Diagnostics
The mechanical design includes an automotive-configured enclosure equipped with standardized electronic proportional joystick inputs and an adjustable mechanical suspension seating arrangement to isolate operator workspaces from chassis vibration. Machine visibility and team communication properties are enhanced by a dual-element, upward-stowing roll-up glass configuration built into the front face of the cab chassis. High-illumination external LED lamp arrays are integrated as standard components on the CX30D and CX38D variants to enable safe work operations during low-light night shifts.

To lower total operating costs and minimize machinery downtime, the hardware includes integrated structural tilting cabs that rotate clear of the frame rail to expose internal powertrain components. Ground-level access doors are distributed around the rear and lateral profiles of the body panels, allowing service technicians to perform routine multi-point fluid checks, filter maintenance, and preventive maintenance processes from ground level. A hydraulic pin-grabber quick-coupler preparation system is built into every factory assembly, allowing operators to change heavy-duty attachments directly from the operator platform without manually driving locking pins. Efficiency is further managed on the flagship CX38D model through electronic auxiliary flow regulators and an automated electronic engine throttle system that drops engine speed to idle when hydraulic pilot lines remain neutral for consecutive periods.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

The 3-ton industrial mini excavator segment is evaluated against established performance benchmarks set by competitive units like the Caterpillar 303 CR and the Kubota U30-5. In strict physical evaluations, the premium-tier CASE CX38D shows a higher total operating weight of 8,333 pounds compared to the Caterpillar 303 CR, which benchmarks at 7,817 pounds, providing the CASE unit with greater mechanical stability during high-load lift cycles.

In digging capabilities, the CASE CX38D reaches a maximum excavation depth of 10 feet 11 inches, exceeding the Kubota U30-5, which reaches a maximum digging depth of 9 feet 5 inches under equivalent testing protocols. Furthermore, the 24.4-horsepower engine platform driving the CASE series matches the 23.6-horsepower output of the Caterpillar alternative while integrating multi-circuit auxiliary hydraulic options that provide dedicated continuous-flow capabilities often omitted or sold as aftermarket add-ons in conventional 3-ton baseline compact machines.
